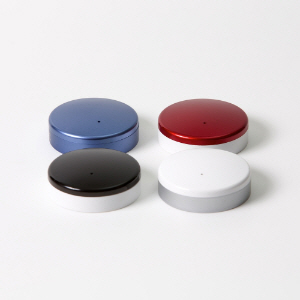

- Pebble Type Beacon
Fixed compact Beacon Specification
| Size |
Φ45 X 15mm |
| Battery Type |
Coin cell (CR2450,630mhA) |
| Transmission Power |
0 ~ -30dBm (within 50m) |
| Maintenance |
USB / OTA (Over The Air) |
| Authentication Country |
Republic of Korea, China, USA |
| Battery Life |
Up to 2 years |
| Application |
Indoor Fixed |
| Color |
Red, Blue, Black, White |
- Attachable to glass, wall, ceiling, etc.
- Radio power control from 0 to 30dBm within 50 meters
- Encrypted communication
- Authenticated in USA, China, and South Korea

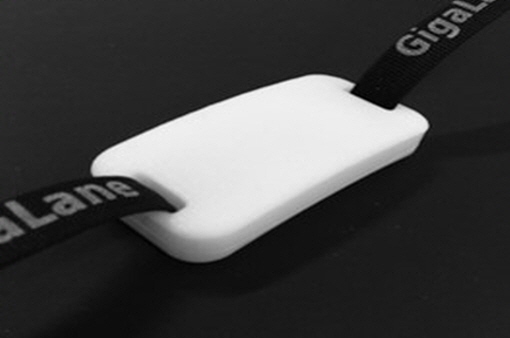

- Bracelet Type Beacon
Wearable Beacon for children, companion animal
| Size |
30 X 62 X 10mm |
| Battery Type |
Coin cell (CR2450,630mhA) |
| Transmission Power |
0 ~ -30dBm (within 50m) |
| Maintenance |
USB / OTA (Over The Air) |
| Authentication Country |
- |
| Battery Life |
2 years |
| Application |
Baby, Children, Patient, Pet |
| Color |
Red, Blue, Black, White |
- Band replaceable
- Living water proof
- Battery embedded Module
- Radio power control from 0 to 30dBm within 50 meters
- Encrypted communication

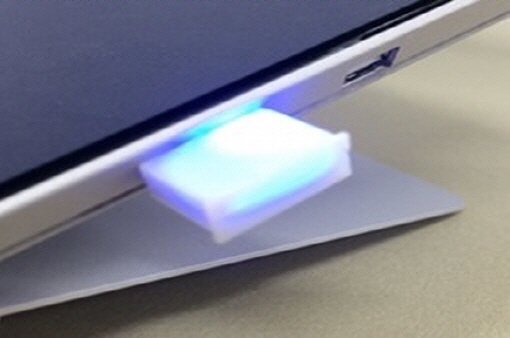

- USB Type Beacon
USB port plug-in Beacon
| Size |
15 X 20 X 5mm |
| Battery Type |
Coin cell (CR2450,630mhA) |
| Transmission Power |
0 ~ -30dBm (within 30m) |
| Maintenance |
USB / OTA (Over The Air) |
| Authentication Country |
- |
| Battery Life |
Unlimited |
| Application |
Payment Terminal |
| Color |
User Define |
- USB Port at PC, laptop, mobile device, payment terminal, etc.
- Electric power sourcing from USB port
- Micro sized USB Module
- Radio power control from 0 to 30dBm within 30 meters
- Encrypted communication
Beacon Module to mount other module
- Customizable to customer needs
- Encrypted communication
